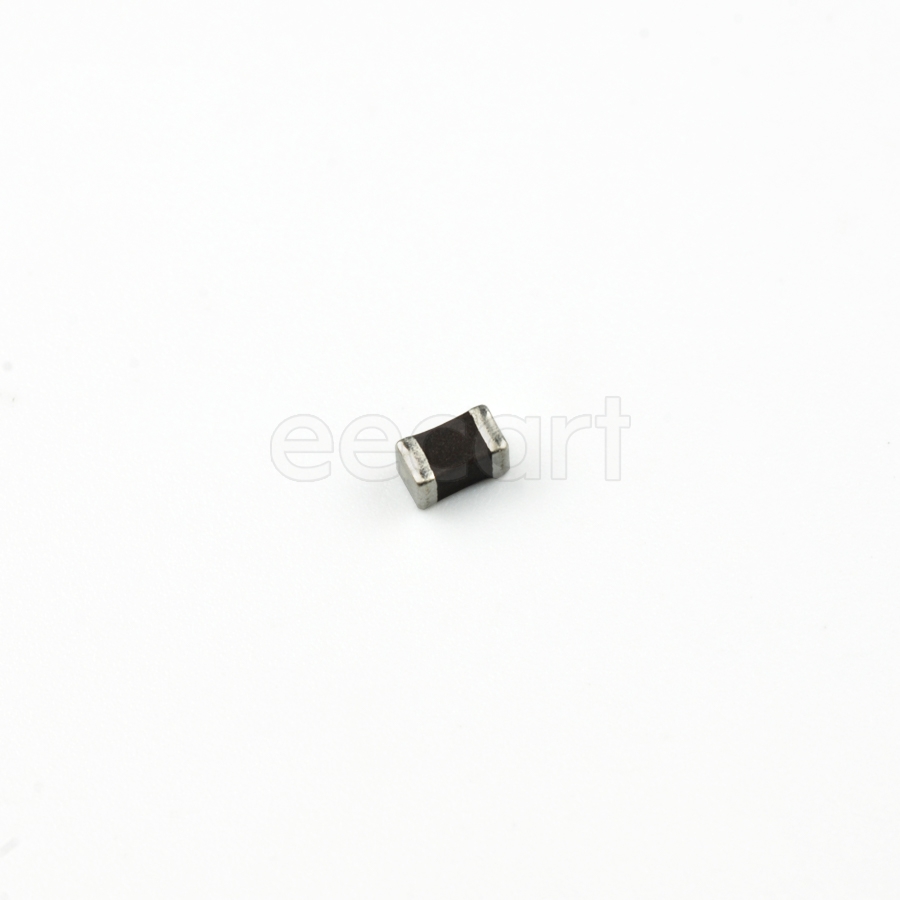

LB3218T331M
Manufacturer:
Taiyo Yuden
Mfr.Part #:
LB3218T331M
Datasheet:
Description:
Fixed Inductors 1207(3218 Metric) SMD/SMT 330 µH 20 % 65 mA 7 Ω
| Parameter | Value |
|---|---|
| Tolerance | 20 % |
| Height - Seated (Max) | 2 mm |
| Length | 3.2004 mm |
| Width | 1.8 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Case Code (Imperial) | 1207 |
| Case Code (Metric) | 3218 |
| Resistance | 9.1 Ω |
| Composition(Kit Type) | Wirewound |
| Height | 1.8 mm |
| Depth | 2 mm |
| Halogen Free | Halogen Free |
| Radiation Hardening | No |
| Self Resonant Frequency | 4 MHz |
| Current Rating | 65 mA |
| DC Resistance (DCR) | 7 Ω |
| Test Frequency | 252 kHz |
| Military Standard | Not |
| Shielding | Unshielded |
| Inductance | 330 µH |
| Core Material | Ferrite |
| Max DC Current | 65 mA |
| DC Current | 65 mA |
| Schedule B | 8504500000 |
| Max Length | 3.4 mm |
| Max Width | 2 mm |
| Min Length | 3 mm |
| Min Width | 1.6 mm |
| RoHS | Compliant |
| Packaging | Reel |
| Type | Wirewound |
